YUSEN Power Nozzle Ring of Turbocharger All New Nozzle Ring of Turbochargerfactory

Product details of the nozzle ring of turbocharger

Product Information

YUSEN Power nozzle ring of turbocharger is precisely manufactured in accordance with industry set norms. Strict internal quality control system to ensure that products meet international standards. The product is now widely available in a variety of industries and has a wide range of applications.

Product Details

Nozzle Assembly List

Item	Part name	Drawing number	Material	Qty/set
0	Nozzle Assembly	770305-0010	N/A	1
1	Ring Nozzle	783255-0001	N/A	1
1-1	Ring	708137-0009	PL33	1
1-1-2	Ring Nozzle	708136-0011	PL33	1
2	Vane	770301-0004	HK-30	11
3	Arm	431795-1008	SS310	11
4	Ring Unison	770303-0006	SS310	1
5	Roller	452868-0005	NITRONIC 80A	4
6	pin	432032-0010	NITRONIC 60	4
7	Spacer	436853-0050	SS310	4



Item	Part name	Drawing number	Material	Qty/set
1	Nozzle Assembly	770305-0021	N/A	1
2	Nozzle and insert ring	783255-0008	N/A	1
3	Nozzle ring	708136-0011	PL33	1
4	Insert ring	708137-0009	PL33	1
5	Vane	770301-0010	HK-30	11
6	Arm	431795-0018	SS310	11
7	Unison ring	770303-0006	SS310	1
8	Roller	452868-0019	NITRONIC 80A	5
9	Dowel pin	432032-0032	T400	5
10	Spacer pin	436853-0037	SS310	4

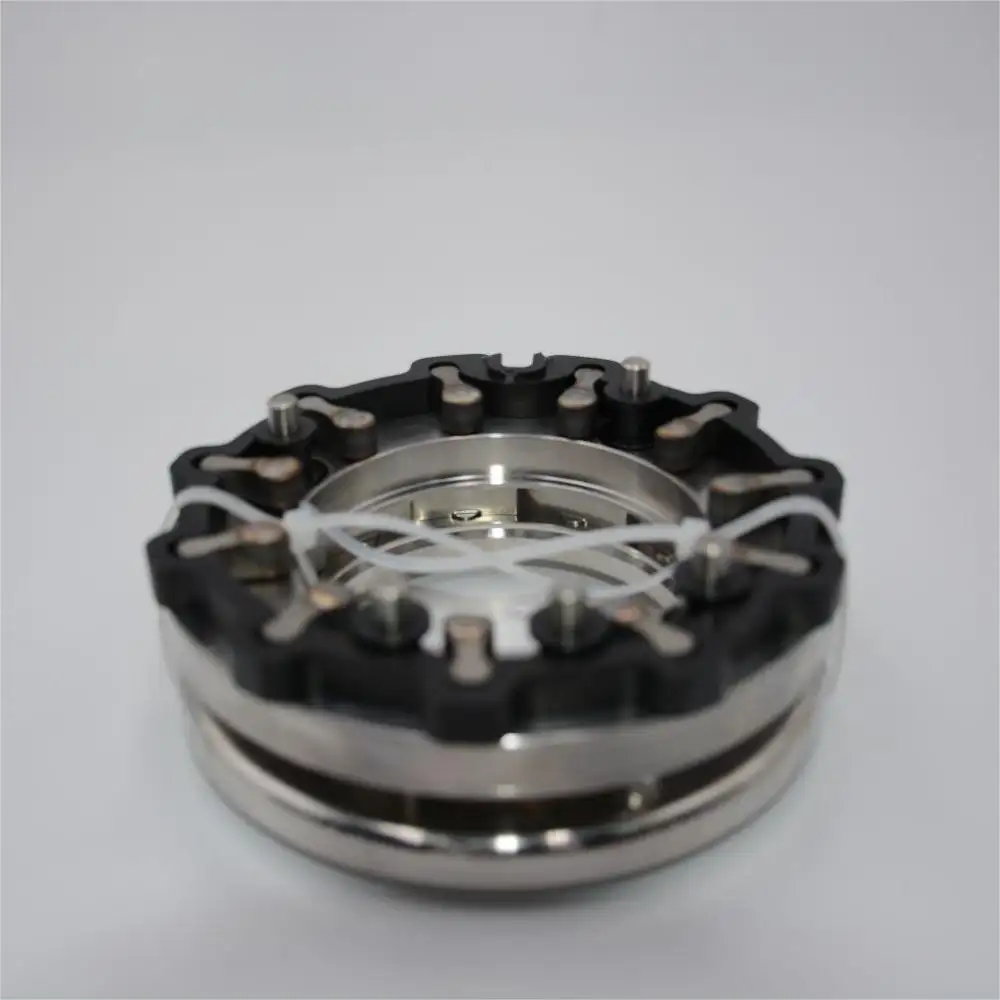

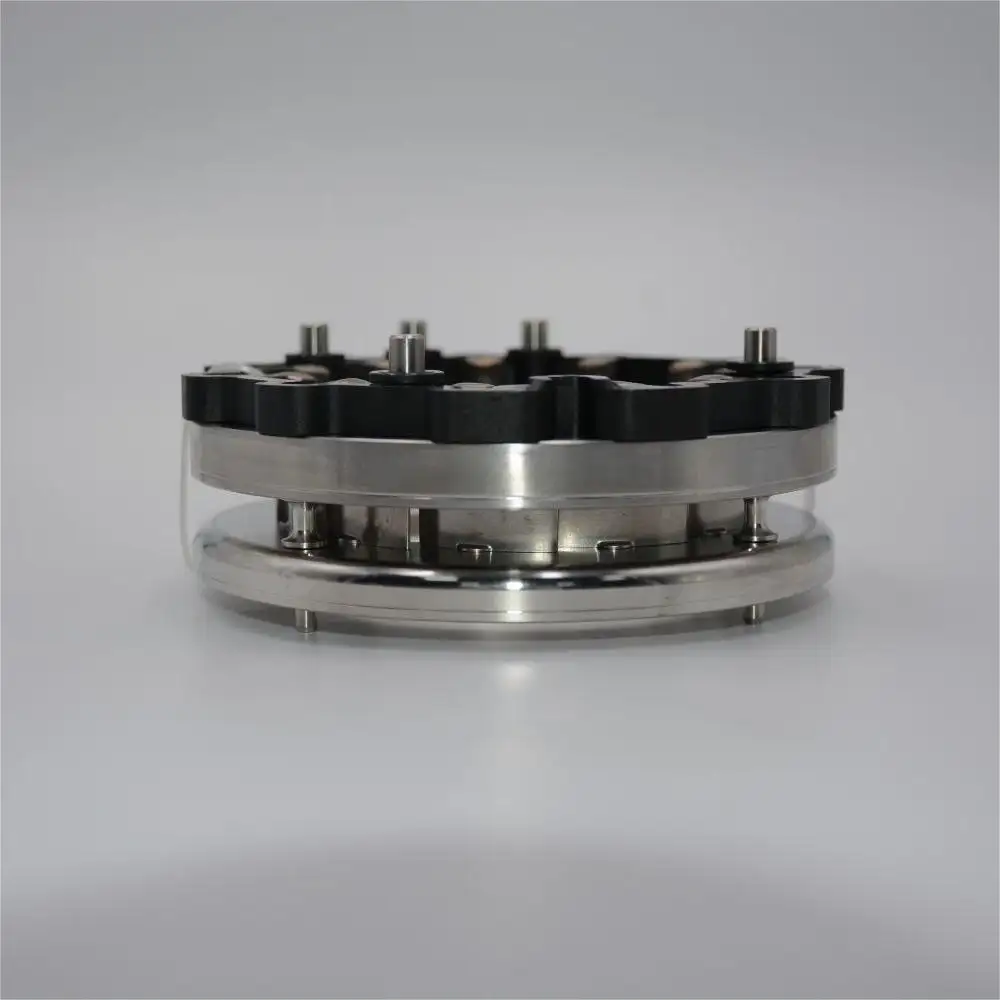

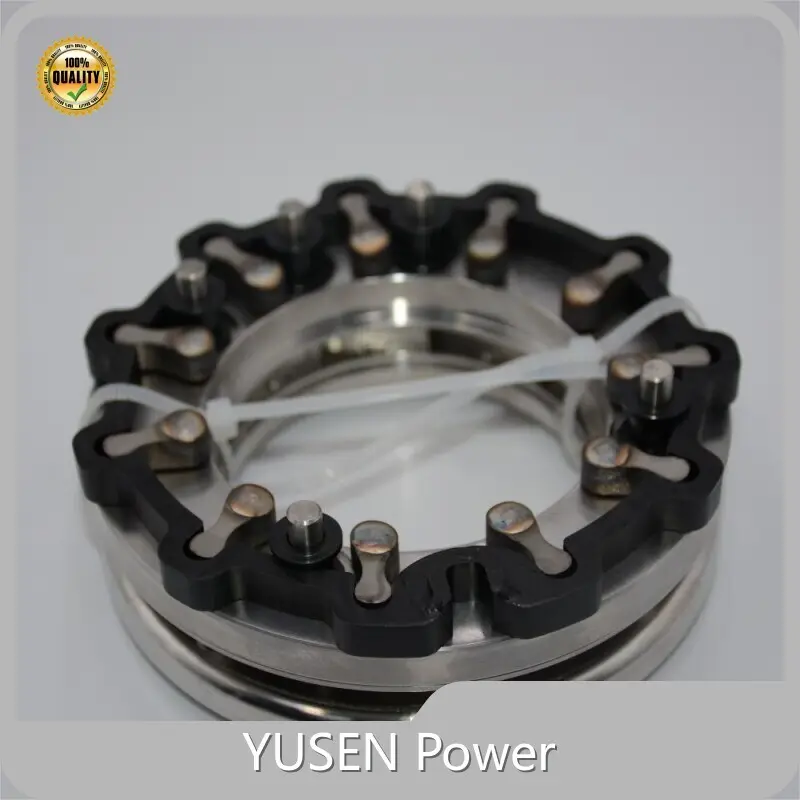

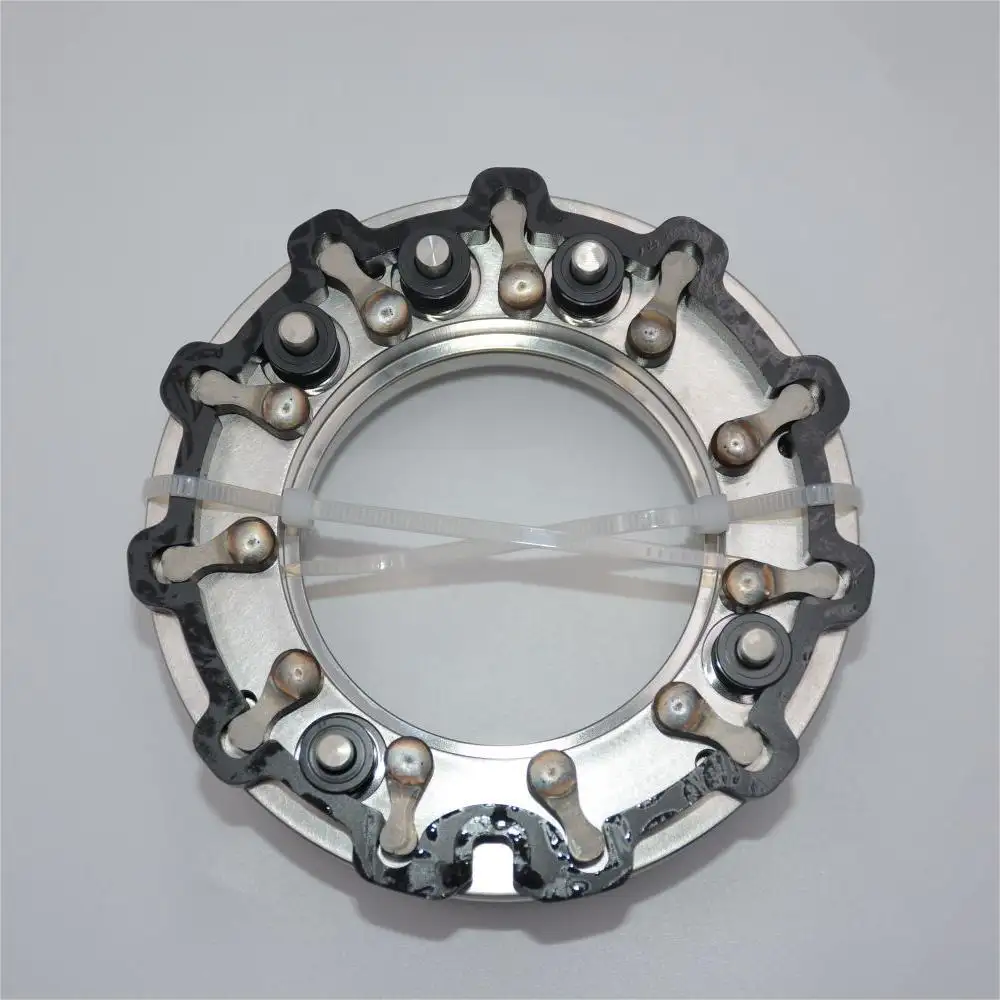

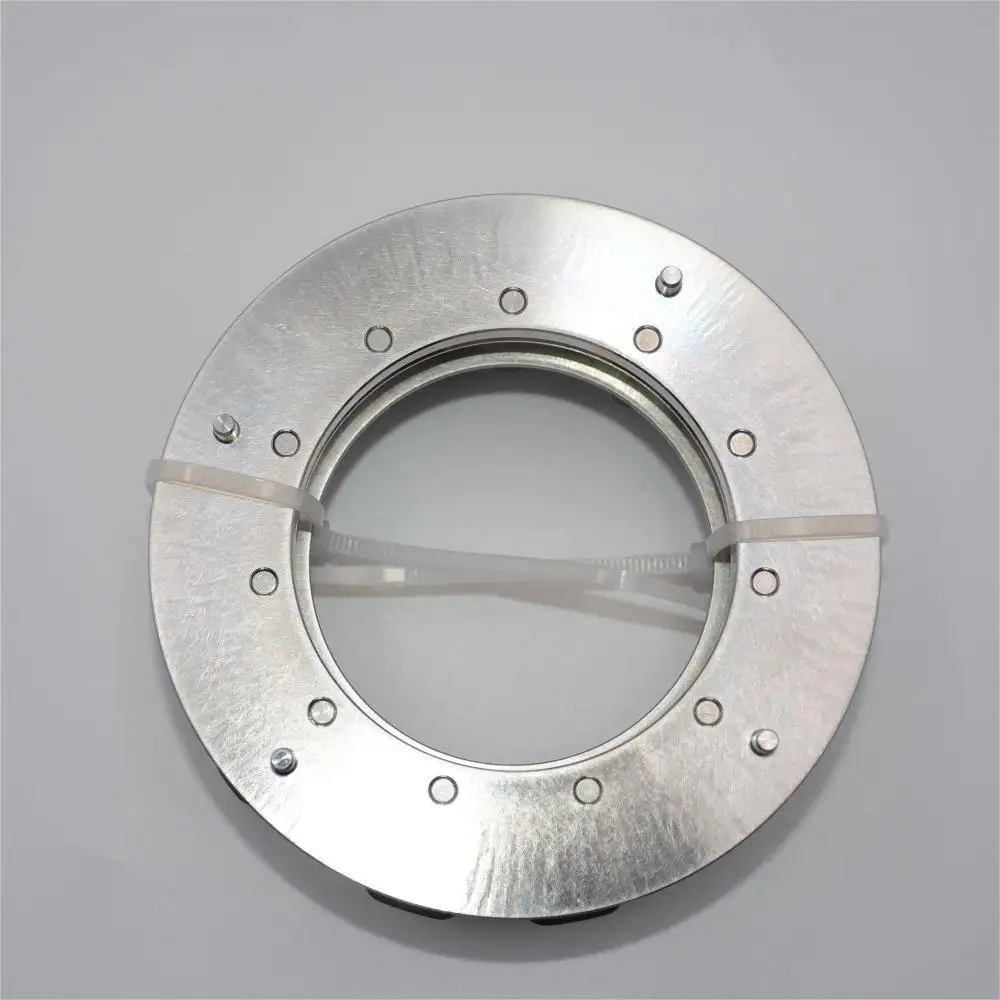

DSC_0879

DSC_0877

DSC_0878

DSC_0880

Company Feature

• YUSEN Power is devoted to providing the best service for customers at the lowest cost.
• The city where our company is located has high humanistic quality and good economic conditions. It also has great traffic routes, which is good for travel and easy for goods delivery.
• Our company's products are not just popular with the domestic market. They are exported to Southeast Asia, Europe, Africa and other countries and regions.
YUSEN Power is very glad to serve you. If you have any doubts, feel free to consult us.
